SERIES 60 L-SHAPED RESERVOIR

• 60" Deck ( A Dim. )
• Weld Riser with Filler / Breather
• Fluid Level / Temp. Gauge ( 5" )
• Hinged lid with T-handle latch, lid catch and 1/4" thick flat gasket.
• Lifting holes
• Baffle with cutouts
• 3/4" N.P.T. drain
• Interior and exterior treated with a rust preventative oil coating. All reservoirs shipped unprimed.
• Leg height is 6" with two 11/16" dia. mounting holes on each side.
• Material is Pickled and Oiled steel
• All accessories are shipped loose inside of reservoir.


An optional drip lip ( 1/4" thick X 2" high ) is available. Use the following formula to calculate the Drip Lip List Price**. 2(A) + L = Total Length in inches, then Total Length x 70¢ per inch = Drip Lip List Price. To order a drip lip add (-DL) to the end of the reservoir model number.

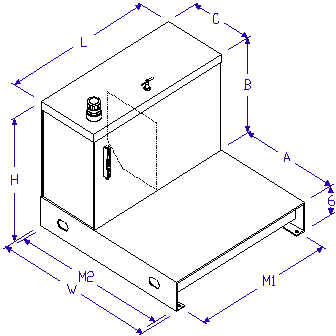

DIMENSIONAL DATA

MODEL

NUMBER

GALLON

CAPACITY

LENGTH

L

WIDTH

W

HEIGHT

H

A

B

C

MOUNTING

MATERIAL

WEIGHT

IN LBS.

M1

M2

FRONT

DECK

L-30-60

30 GAL

33 1/2"

75 1/2"

26"

60"

20"

14 5/8"

29"

58 1/2"

7 GA

7 GA

376

L-45-60

45 GAL

45 1/2"

75 1/2"

26 1/4"

60"

20 1/4"

15 1/2"

43"

58 1/2"

7 GA

7 GA

481

L-60-60

60 GAL

45 1/2"

75 1/2"

33"

60"

27"

15 1/2"

43"

58 1/2"

7 GA

7 GA

527

L-80-60

80 GAL

58 1/4"

75 1/2"

35"

60"

29"

15 1/2"

55"

58 1/2"

7 GA

3/8"

943

L-100-60

100 GAL

58 1/4"

78"

35"

60"

29"

18"

55"

58 1/2"

7 GA

3/8"

977

L-120-60

120 GAL

58 1/4"

80 5/8"

35"

60"

29"

20 5/8"

55"

58 1/2"

7 GA

3/8"

1015
